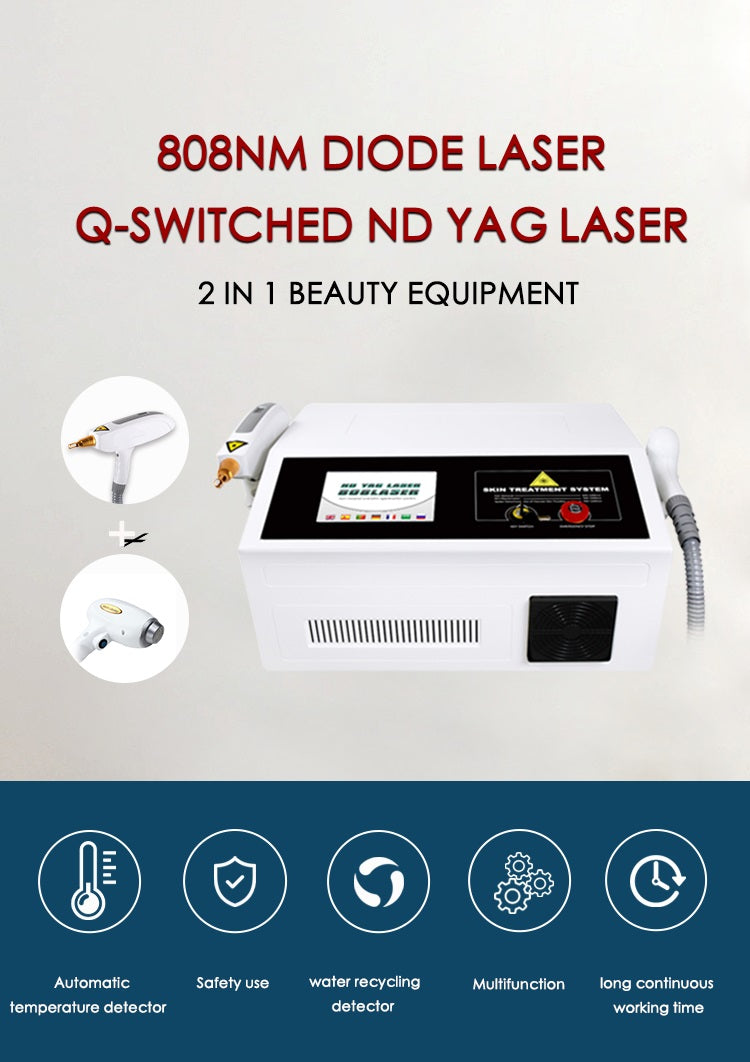

XSD-F03 808NM DIODE LASER & Q-SWITCHED ND YAG LASER 2 IN 1 BEAUTY EQUIPMENT

System introduction

Permanent hair removal and pigment removal are the most demanding treatment in beauty spa and derma clinic. This portable equipment perfectly combine 808nm diode laser and q-switched nd yag laser technology, easy carry out and save space.

808nm diode laser system is widely practiced and ideal hair removal system in clinical use. Selective photothermolysis (SPTL), the matching of a specific wavelength of light and pulse duration to obtain optimal effect on a targeted tissue with minimal effect on surrounding tissue. Lasers can cause localized damage by selectively heating dark target matter, melanin, in the area that causes hair growth, the follicle, while not heating the rest of the skin. The energy absorption of hair follicle melanin is strongest at 808nm wavelength, which can damage the hair follicles effectively, meanwhile no adverse reaction to skin surface.

Q-switch nd yag laser can be absorbed by the blue and black melanin. The melanin will split into an even more tiny particles. They are so small that they can be metabolized by the lymphatic system and be egested out of the body. Thus the tattoo or other pigmentations will be removed without any injury to normal tissue. The treatment is safe and convenient without downtime or side effects.

SPECS

DETAILS

Functions

1. Remove various tattoo, eye line, eye brow, pigmentation.
2. Remove chloasma, age pigment, nevus, birthmark and Nevus of Ota.
3. Skin tightening, skin whitening, skin toning.
4. Permanent hair removal

Features

1. Multifunctional: 2 laser technology combine in 1 system

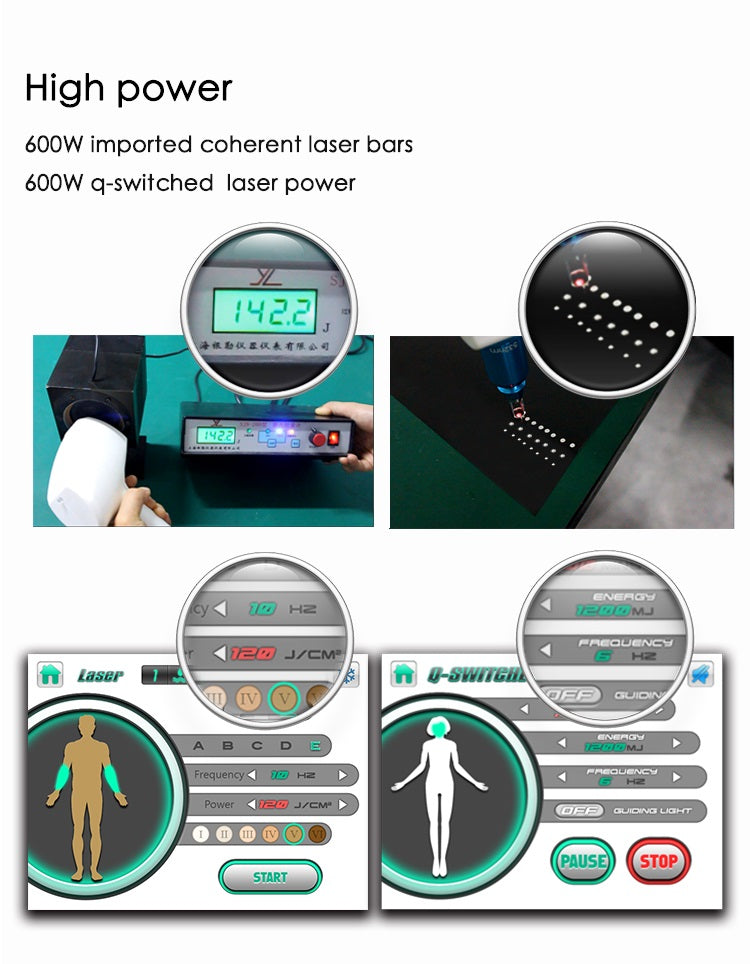

2. High power: 600 W q-switched laser power, 100-1200mj output fluence adjustable,1-6 Hz frequencyadjustable;

600W imported coherent diode laser bars, total power 2500W

3. 3. Super cooling system:condenser adopted cooling system ensurelonger continuous working hours perfectly match massive treatment
4. Comfortable: 0~-5℃sapphire contact cooling temperature

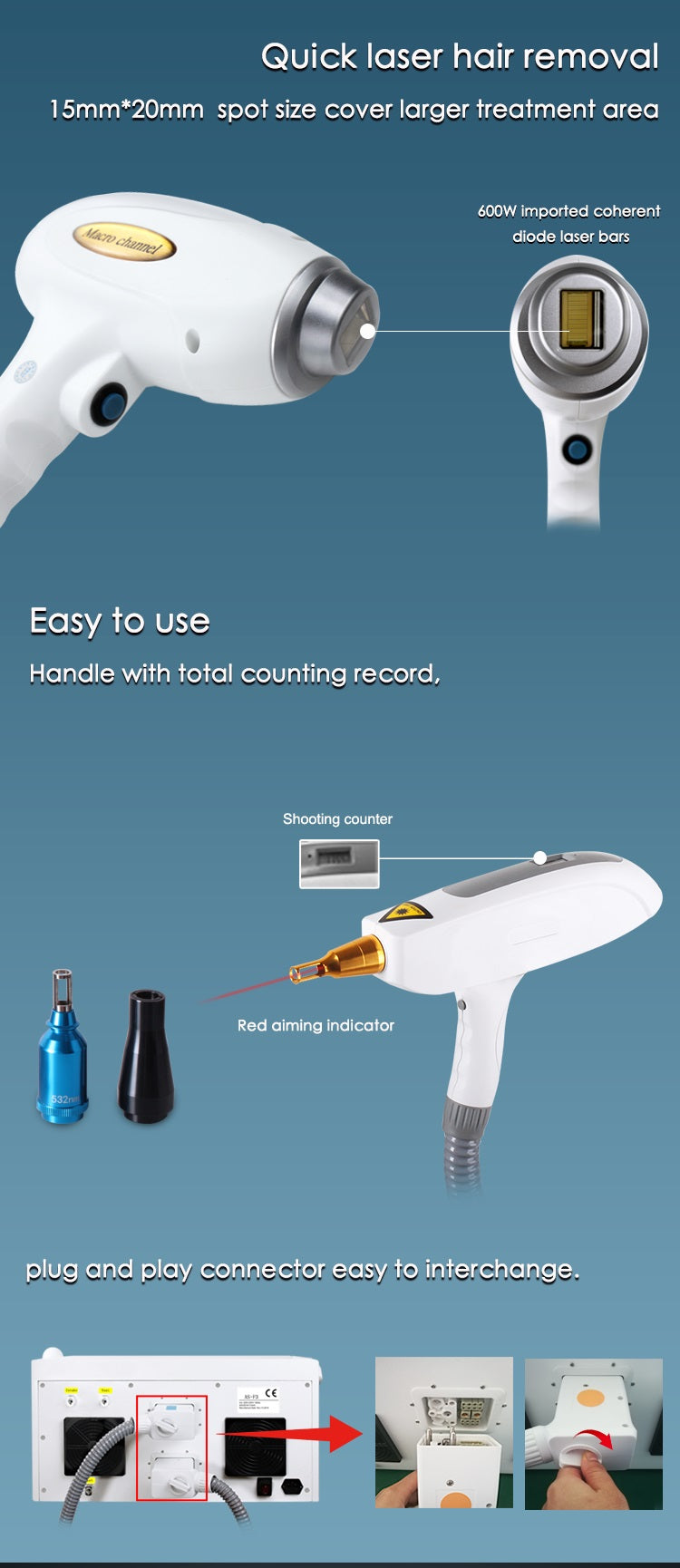

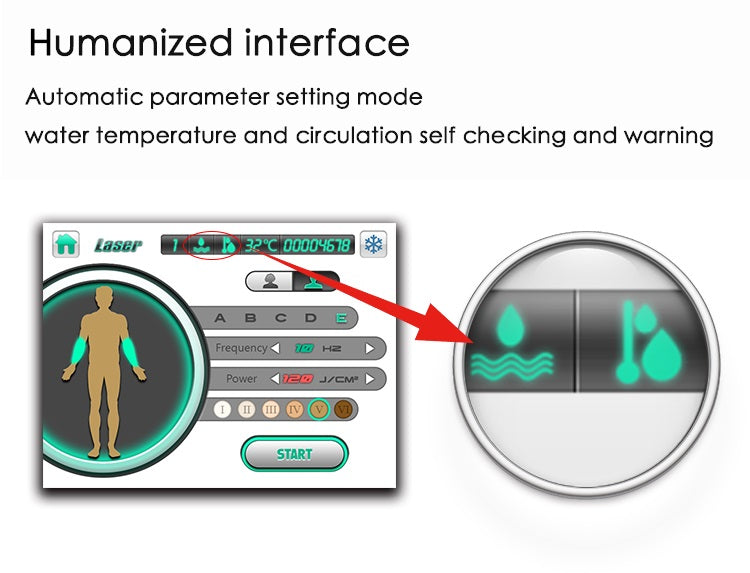

5. Easy to use: Handle with total counting record, plug and play connectoreasy to interchange.Red aiming indicator can be turned on/off.
6. 6. Safety use: automatic water recycling and temperature detectorensure machine long working life
7. Quick treatment: 15mm*20mm large spot size cover larger treatment area per shoot.
8. Economical: q switched nd yaglaser assure flash 2,000,000. Diode laser ensure 20,000,000 shoots. Portable design is economical for transportation.

Accessory list

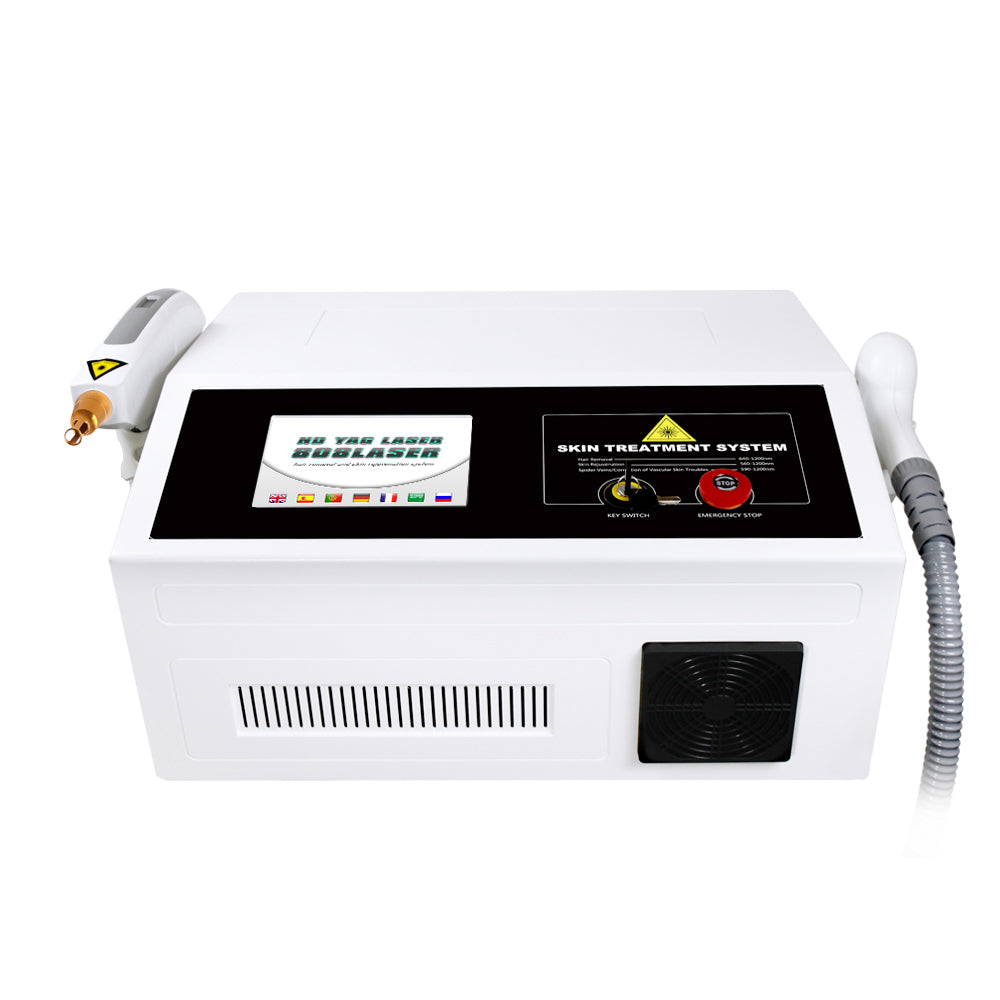

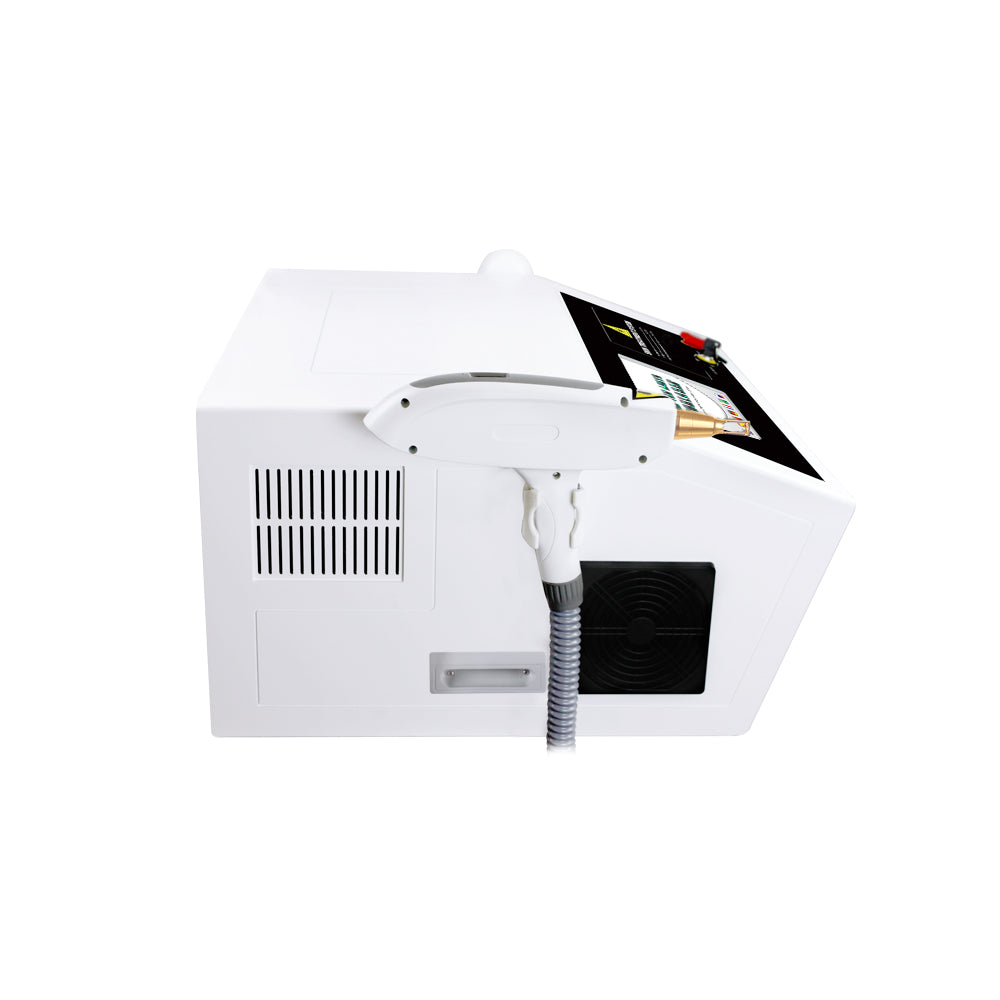

1 x Main Machine

1 x Nd yag laser probe

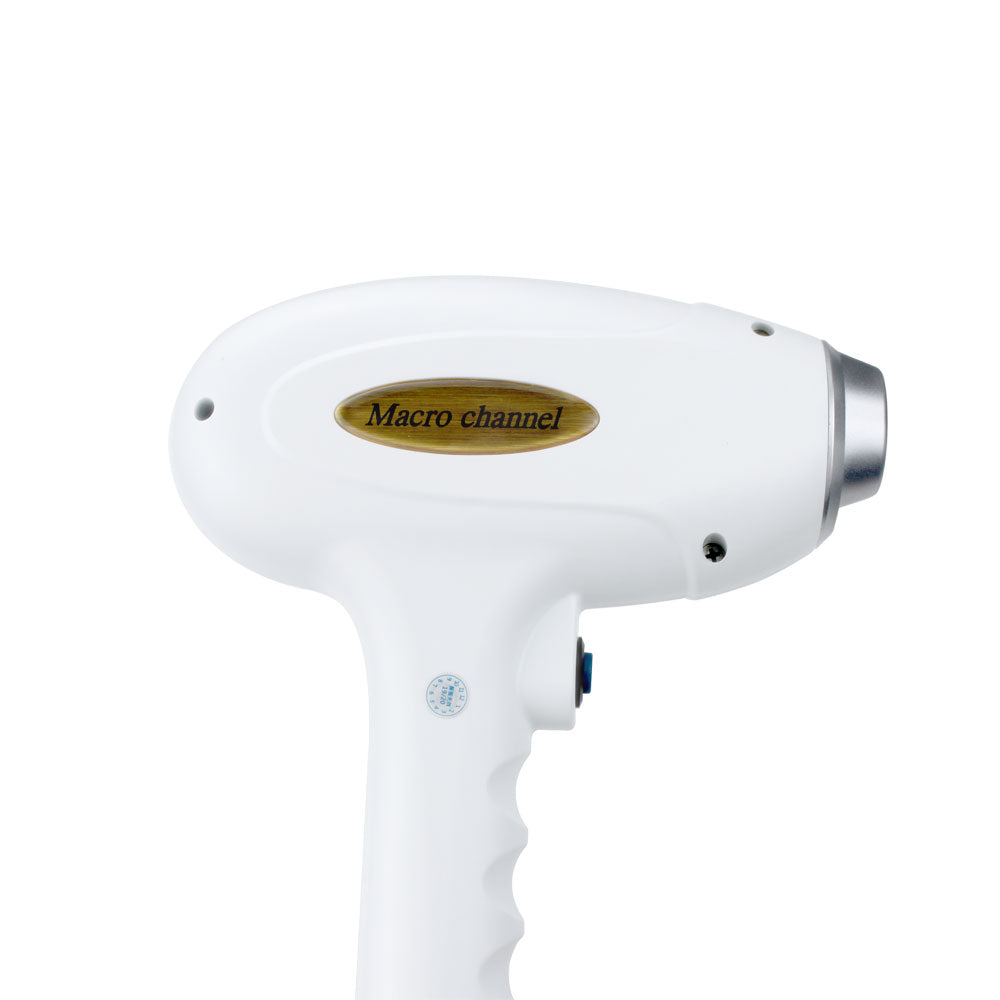

1 x Diode laser probe

3 x Laser tips (1064/532/1320nm)

1 x Doctor glasses

1 x Goggles

1 x Power Cord

1 x Funnel with connector

1 x Drainage connector

2 x Keys

2 x Fuse

1 x User Manual
